Specification:
Specifications

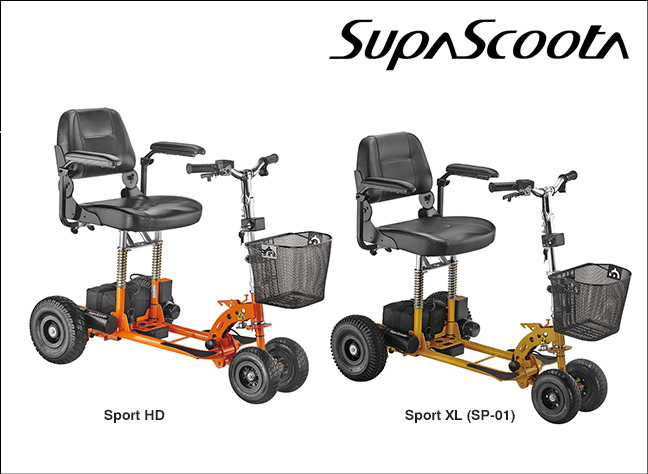

Sport HD / Sport XL(SP-01)
Front Wheel Size
200 x 65 mm (8 x 2.5")
Rear Wheel Size
260 x 85 mm (10 x 3")
Ground Clearance(tiller)
65 mm (2.6")
Length
Sport HD (Short wheelbase):
1050 mm (41.3")
Sport XL (SP-01) (Long wheelbase):
1100 mm (43")
Weight Without Seat
Front frame : 10.9 kg (24 lbs)
Front frame without front wheels :
8.7 kg (19 lbs)
Sport HD (Short wheelbase): Back frame : 11.1 kg (24.5 lbs)
Sport XL (SP-01) (Long wheelbase): Back frame : 11.4 kg (25 lbs)
Weight of Seat
8.6 kgs (19 lbs incl. seat frame & arm rest)
Max Loading
Sport HD (Short wheelbase):110 kg (275 lbs) on level ground
Sport XL (SP-01) (Long wheelbase):125 kg (275 lbs) on level ground
Turn Radius
Sport HD (Short wheelbase):915 mm (36")
Sport XL (SP-01) (Long wheelbase):975 mm (38.5")
Motor Output
Sport HD (Short wheelbase):2 x 150W
Sport XL (SP-01) (Long wheelbase):2 x 180W
Transmission
Worm Drive Gearbox
Reverse
Forward/Reverse Switch
Brakes
Dynamic Braking and Electromagnetic Brake
Battery (SLA)
24V 15ah- 9.2kg (20 lbs)
Lithium Battery (Optional)
24V 15ah- 4.0kg (9 lbs)
Charger (SLA battery)
Off board 24 volt 2 amp
Charger (Lithium battery)
Off board 24 volt 4 amp
Max Speed (for UK)
6.4 kph (4 mph)
Max Speed (Except UK)
9.0 kph (5.6 mph) (2nd speed choice– 5.2 Kph - 3.2 mph)
Slope Grade Ability
Max. Recommended - 9 Degrees.
Travel Distance
Up to 14 km (8.5 miles) with standard SLA battery, Up to 18 km (11 miles) with 15ah lithium battery
Arm Rests
Distance between armrests 45cm - 55cm (18 -22")
Speed Reduction System
Reduces operating speed to a safe level when turning
